Authentication and Token Lifecycle

The public token journey is:

API key
  -> POST /api/v1/auth/token
  -> access token + refresh token
  -> Bearer requests
  -> POST /api/v1/auth/token/refresh
  -> rotated token pair
  -> POST /api/v1/auth/token/revoke

An API key is not a Bearer token. Keep API keys, access tokens, and refresh tokens out of URLs, browser bundles, source control, and logs.

Swipe to pan

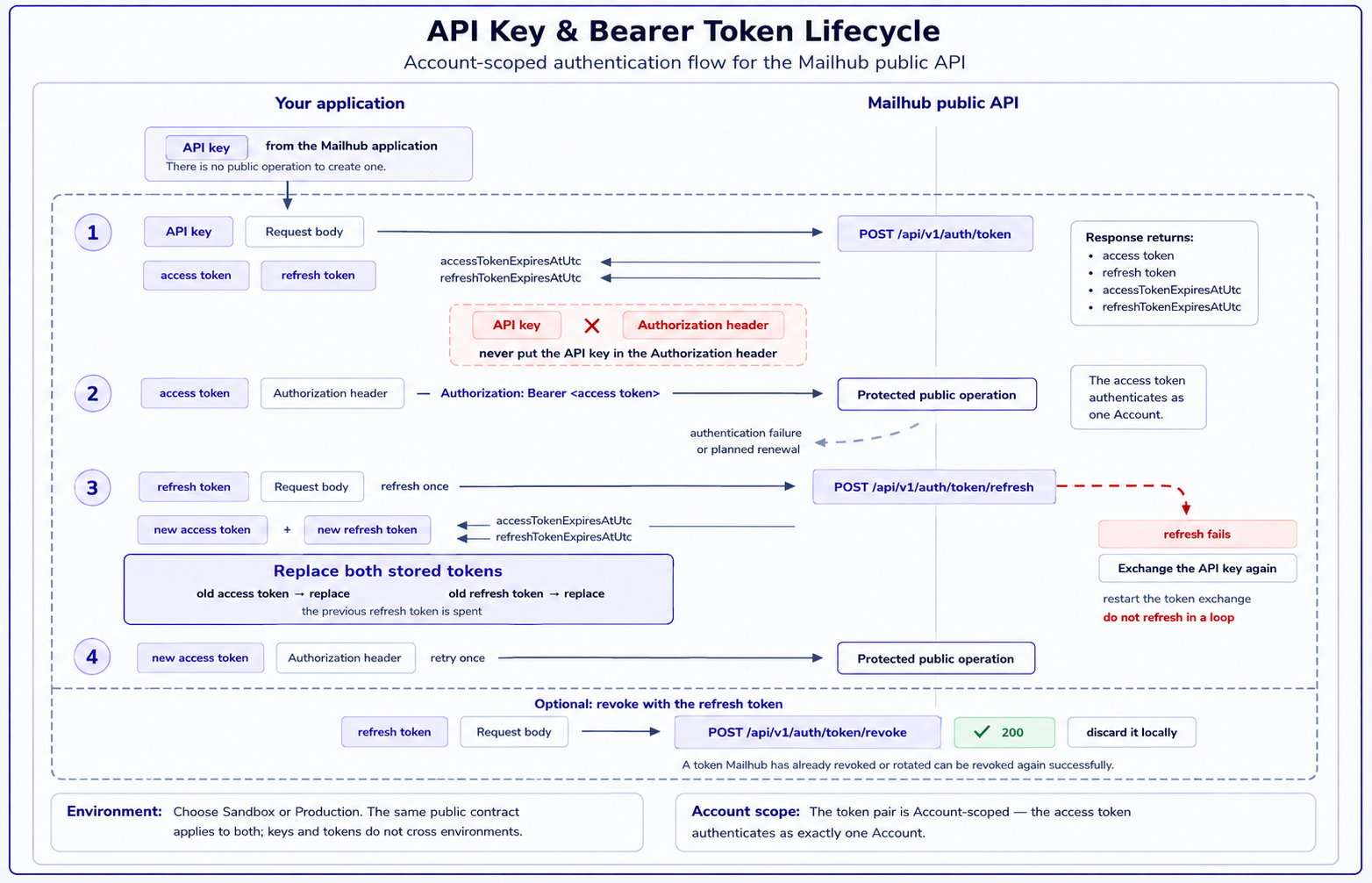

The credential lifecycle, end to end:

• The API key comes from the Mailhub application. There is no public operation that creates one.
• The key travels in the request body of the token exchange. Never put it in the Authorization header.
• The exchange returns an access token, a refresh token, and accessTokenExpiresAtUtc and refreshTokenExpiresAtUtc.
• Protected operations use Authorization: Bearer <access token>. The access token authenticates as exactly one Account.
• On an authentication failure or a planned renewal, refresh once. Refresh returns a new pair, and the previous refresh token is spent — replace both stored tokens before the next request.
• If refresh fails, exchange the API key again. Do not refresh in a loop, and retry the original request only once after a refresh succeeds.
• Revoke is optional and takes the refresh token; discard the pair locally afterwards.
• Keys and tokens do not cross environments — a Sandbox key never produces a Production token.

Exchange an API key for a token pair

POST/api/v1/auth/token Open token exchange in the API Reference.

This anonymous operation accepts the API key in its JSON request body. Use the configured base URL and synthetic environment-variable values in examples:

cURL

curl -X POST "${MAILHUB_API_BASE_URL}/api/v1/auth/token" \
-H "Content-Type: application/json" \
-d '{"apiKey":"'"${MAILHUB_API_KEY}"'"}'

JavaScript

const response = await fetch(`${process.env.MAILHUB_API_BASE_URL}/api/v1/auth/token`, {
method: 'POST',
headers: {'Content-Type': 'application/json'},
body: JSON.stringify({apiKey: process.env.MAILHUB_API_KEY}),
});

const {data: session} = await response.json();
// Retain session.accessToken, session.refreshToken, and both expiry fields.

Python

import os
import requests

response = requests.post(
  f"{os.environ['MAILHUB_API_BASE_URL']}/api/v1/auth/token",
  json={"apiKey": os.environ["MAILHUB_API_KEY"]},
)

session = response.json()["data"]
# Retain session["accessToken"], session["refreshToken"], and both expiry fields.

Java

// Java 11+ java.net.http — no Mailhub package to install and no third-party client.
var request = HttpRequest.newBuilder()
  .uri(URI.create(System.getenv("MAILHUB_API_BASE_URL") + "/api/v1/auth/token"))
  .header("Content-Type", "application/json")
  .POST(HttpRequest.BodyPublishers.ofString(
      "{\"apiKey\":\"" + System.getenv("MAILHUB_API_KEY") + "\"}"))
  .build();

HttpResponse<String> response = HttpClient.newHttpClient()
  .send(request, HttpResponse.BodyHandlers.ofString());

// Parse response.body() with your own JSON library, then retain data.accessToken,
// data.refreshToken, and both expiry fields.

A successful response uses the public envelope and returns the values to retain for the session:

{
  "success": true,
  "data": {
    "accountId": "<account-id>",
    "apiKeyId": "<api-key-id>",
    "accessToken": "<access-token>",
    "refreshToken": "<refresh-token>",
    "accessTokenExpiresAtUtc": "<utc-timestamp>",
    "refreshTokenExpiresAtUtc": "<utc-timestamp>"
  },
  "errors": null
}

Retain the access token, refresh token, and their response expiry fields. The response fields are the source of truth; this portal does not publish token lifetime values.

Use the access token

Send the access token on protected public operations:

Authorization: Bearer <access-token>

Refresh once, then re-authenticate

POST/api/v1/auth/token/refresh Open token refresh in the API Reference.

Send the retained refresh token in the JSON request body. Like token exchange, this operation is anonymous — it carries no Authorization header.

cURL

curl -X POST "${MAILHUB_API_BASE_URL}/api/v1/auth/token/refresh" \
-H "Content-Type: application/json" \
-d '{"refreshToken":"'"${MAILHUB_REFRESH_TOKEN}"'"}'

JavaScript

const response = await fetch(`${process.env.MAILHUB_API_BASE_URL}/api/v1/auth/token/refresh`, {
method: 'POST',
headers: {'Content-Type': 'application/json'},
body: JSON.stringify({refreshToken: process.env.MAILHUB_REFRESH_TOKEN}),
});

const {data: session} = await response.json();
// Replace BOTH stored tokens before the next request.

Python

import os
import requests

response = requests.post(
  f"{os.environ['MAILHUB_API_BASE_URL']}/api/v1/auth/token/refresh",
  json={"refreshToken": os.environ["MAILHUB_REFRESH_TOKEN"]},
)

session = response.json()["data"]
# Replace BOTH stored tokens before the next request.

Java

var request = HttpRequest.newBuilder()
  .uri(URI.create(System.getenv("MAILHUB_API_BASE_URL") + "/api/v1/auth/token/refresh"))
  .header("Content-Type", "application/json")
  .POST(HttpRequest.BodyPublishers.ofString(
      "{\"refreshToken\":\"" + System.getenv("MAILHUB_REFRESH_TOKEN") + "\"}"))
  .build();

HttpResponse<String> response = HttpClient.newHttpClient()
  .send(request, HttpResponse.BodyHandlers.ofString());

// Replace BOTH stored tokens with data.accessToken and data.refreshToken.

A successful refresh returns the same fields as token exchange — a new access token and a new refresh token:

{
  "success": true,
  "data": {
    "accountId": "<account-id>",
    "apiKeyId": "<api-key-id>",
    "accessToken": "<new-access-token>",
    "refreshToken": "<new-refresh-token>",
    "accessTokenExpiresAtUtc": "<utc-timestamp>",
    "refreshTokenExpiresAtUtc": "<utc-timestamp>"
  },
  "errors": null
}

Both tokens are replaced, not just the access token

The response carries a new refreshToken as well as a new accessToken. Replace both stored values before making another request; continuing to send the previous refresh token is not part of the documented contract.

After a successful refresh, replace both stored tokens with the returned access token and refresh token before making another request. For a failed protected request, make at most one controlled refresh attempt. If refresh fails, re-authenticate with the API key. Do not create an infinite refresh or retry loop.

A failed refresh uses the standard error envelope — 400 for a request that could not be read, 422 when refreshToken is missing, empty, or whitespace-only, and 401 for a refresh token that is unrecognized, expired, or already rotated or revoked. The 422 is decided by validation before any token lookup; every other refresh failure is a 401. See Authentication Errors.

Revoke when access should end

POST/api/v1/auth/token/revoke Open token revocation in the API Reference.

Revocation takes the same anonymous, refresh-token body as refresh does.

cURL

curl -X POST "${MAILHUB_API_BASE_URL}/api/v1/auth/token/revoke" \
-H "Content-Type: application/json" \
-d '{"refreshToken":"'"${MAILHUB_REFRESH_TOKEN}"'"}'

JavaScript

const response = await fetch(`${process.env.MAILHUB_API_BASE_URL}/api/v1/auth/token/revoke`, {
method: 'POST',
headers: {'Content-Type': 'application/json'},
body: JSON.stringify({refreshToken: process.env.MAILHUB_REFRESH_TOKEN}),
});

const {data} = await response.json();
// data.isSuccess is the documented operation result.

Python

import os
import requests

response = requests.post(
  f"{os.environ['MAILHUB_API_BASE_URL']}/api/v1/auth/token/revoke",
  json={"refreshToken": os.environ["MAILHUB_REFRESH_TOKEN"]},
)

result = response.json()["data"]
# result["isSuccess"] is the documented operation result.

Java

var request = HttpRequest.newBuilder()
  .uri(URI.create(System.getenv("MAILHUB_API_BASE_URL") + "/api/v1/auth/token/revoke"))
  .header("Content-Type", "application/json")
  .POST(HttpRequest.BodyPublishers.ofString(
      "{\"refreshToken\":\"" + System.getenv("MAILHUB_REFRESH_TOKEN") + "\"}"))
  .build();

HttpResponse<String> response = HttpClient.newHttpClient()
  .send(request, HttpResponse.BodyHandlers.ofString());

// Read data.isSuccess from response.body() with your own JSON library.

A successful revocation returns the bounded operation result and nothing else:

{
  "success": true,
  "data": {
    "isSuccess": true
  },
  "errors": null
}

Revoke the refresh session when access should end. Check the public response before discarding your locally retained credentials.

Revoking a token Mailhub has already revoked — by an earlier revoke, or by the rotation a successful refresh performs — answers 200 again rather than an error, so a repeated revoke after a lost response is safe. That is the bounded statement, not blanket idempotency: a token Mailhub does not recognize answers 401, and a missing, empty, or whitespace-only refreshToken answers 422.

Read data.isSuccess as the operation result only

data.isSuccess reports the outcome of this request. The public contract does not describe a wider sign-out, a session inventory, or what any other outstanding credential does afterwards — do not infer those from the boolean. Stop using the revoked refresh token and obtain a new pair with your API key when access is needed again.

Sub-account scoping

Optional header

X-SubAccount-Id is optional. Omit it for the authenticated Account's default context; send an authorized Sub-account ID only where the workflow needs it.

The Sub-account must belong to the authenticated Account. Use the same optional scope consistently for one workflow, but do not assume it has one uniform effect across every operation:

• Token exchange validates the supplied Sub-account but does not persist it in either token.
• List Orders filters the list, and Order creation tags the new Order.
• Get Order restricts the lookup to the selected Sub-account: an Order that belongs to a different Sub-account is reported as 404 Not Found, even though the same Order is returned when the header is omitted.
• Rates and Label purchase evaluate the request against the selected Sub-account's carrier availability, which can narrow the carriers on offer. It does not change pricing, and it does not restrict record access.
• Update an Order's status, download/cancel a Label, and refresh/revoke have no effect from a well-formed header.

A malformed header can return 400. Token exchange can return 404 when the Sub-account is unavailable to the Account and 409 when it is inactive. See Work with Sub-accounts for the complete operation-by-operation matrix and the API Reference for each operation's current header description.

Next step

Continue to Make Your First Request for the safe exchange-then-list flow.
